PVC-X Stock List

This page contains the general stock list of supplies needed to build the PVC-X. Excluding the rear wheels, the retail cost of the materials for me was about $200 (not including taxes & shipping). Buying in bulk should greatly reduce this cost. Bolts, screws, glue, and paint are not included here either.

The cost of the rear wheels will vary widely depending upon the source, type of materials & construction.

PVC Frame Pipes and Fittings

For me, the price for these material was about $125 not including shipping. Prices and availability will vary by location.

(1) 1.5" x 10" Pipe
(1) 1.5" x 10" Pipe

The major elements of the frame are made out of 1 1/2" Schedule 40 PVC.

press to zoom
(6) 1 1/2" Snap T
(6) 1 1/2" Snap T

Slip on T's could also be used instead of Snap On T's. These fittings are used for the cross braces.

press to zoom
(2) 1 1/2" Side Elbow Outlet
(2) 1 1/2" Side Elbow Outlet

These are used to connect the Lower Chasis and Backrest.

press to zoom
(4) 90 Side Elbow Outlet
(4) 90 Side Elbow Outlet

Two are used on the front leg supports to create the curve, and two are used on the Lower Chasis by the trike wheel.

press to zoom
(2) 1 1/2" Flat End Cap
(2) 1 1/2" Flat End Cap

These are used to secure a cross brace for the rear seat pan.

press to zoom
(2) 1 1/2" Rounded End Cap
(2) 1 1/2" Rounded End Cap

The caps go on the top of the backrest supports to create a smooth end surface.

press to zoom
(2) 1 1/2" to 3/4" Socket T
(2) 1 1/2" to 3/4" Socket T

These fittings connect the axle rod to the rest of the PVC frame by seating the metal collars.

press to zoom
(2) 1 1/2" to 1" Reducer
(2) 1 1/2" to 1" Reducer

Comes after the 90 degree elbow to convert the vertical leg support to 1".

press to zoom
1" x 5" Pipe
1" x 5" Pipe

1" PVC is used for the vertical leg supports, and the footrest bars.

press to zoom

Axle Materials

Axle materials cost about $35. The most expensive aspect is the metal collars. Buying in bulk should reduce the price significantly. Remember, you must match your axle rod with your wheel hub size! Wheelchairs are typically 1/2". Mountain bikes are 12mm.

1/2" x 36" Steel Rod
1/2" x 36" Steel Rod

This rod will need to be cut depending upon the width of the frame and rear wheels. I used 1/2" since that size matches my wheelchair wheel axle.

press to zoom
(10) 1/2" I.D. x 3/4" O.D Metal Collars
(10) 1/2" I.D. x 3/4" O.D Metal Collars

Each Side T holds (2) collars = (4). I use (2) collars taped together to hold the wheel on = (4). (2) collars on the inside of the frame to secure the rod from moving sideways. Total = 10 collars.

press to zoom
(4) Hose clamps
(4) Hose clamps

(2) surround the Side T which holds the axle rod to provide support. (2) Surround the cut section of the vertical axle support.

press to zoom

Front Trike Wheel

The front trike wheel you choose will depend upon local availability. There are two basic types, swivel and stem. There are multiple different sources of caster wheels depending upon your approach.

1. You can purchase an assembly intended for industrial uses.
2. You can purchase an assembly intended for hospital style wheelchairs.

3. You can purchase an assembly intended for power wheelchairs.

The desired wheel size is 6" or 7" in diameter by 2" wide. Hospital style assemblies will usually be 1" in width, but they may work. Common power WC assemblies are 2" wide. Industrial assemblies will vary in wheel width and diameter size.

Ideally, the wheel would be pneumatic, but you may not have that option.

The casters you want to AVOID are the ones made for sports/ultralightweight wheelchairs. These casters are both extremely expensive and too small in size for rough terrain.

Prices will vary in the $25 to $50 range.


AlveyTech Front Caster Wheel Assembly for The Deluxe Hoverboard Go-Kart Attachment Kit
AlveyTech Front Caster Wheel Assembly for The Deluxe Hoverboard Go-Kart Attachment Kit

6"x2" caster wheel includes the tire, rim, tube, axle, & fork. Inner tube with an angled Schrader valve stem. Our Deluxe Hoverboard go-kart kit has proven to be a popular item and now we can supply a replacement caster to keep it going. The same caster that comes with a new Deluxe Hoverboard Go-Kart Attachment Kit with Large Front Wheel & Suspension

press to zoom
6" x 2" Swivel Pneumatic Caster
6" x 2" Swivel Pneumatic Caster

The swivel caster has a top plate that will be bolted to the Lower Chasis in some manner.

press to zoom
6" x 2" Stem Pneumatic
6" x 2" Stem Pneumatic

The stem will have to be secured to the Lower Chasis in some manner. Likely using a similar method of metal collars to hold the axle.

press to zoom
61BmFuqWhuL._AC_UL480_FMwebp_QL65_
61BmFuqWhuL._AC_UL480_FMwebp_QL65_
press to zoom
WC Caster Wheel
WC Caster Wheel

You can buy the wheel and fork separately.

press to zoom
WC Wheel & Fork
WC Wheel & Fork

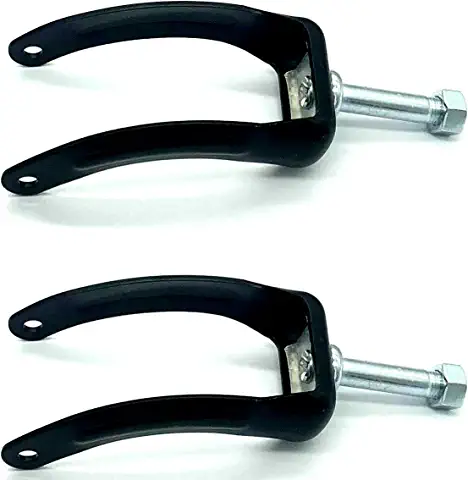

This is a standard WC fork of different diameters 6,7,8".

press to zoom
Used Power WC 6" x 2"
Used Power WC 6" x 2"

$45 - Pride Jazzy Select Elite GT 6 Wheelchair Front Caster Wheels w/ Forks 6" X 2"

press to zoom
Used Power WC 6" x 2"
Used Power WC 6" x 2"

PERMOBIL M300 HD Power WHEELCHAIR Pair (2) CASTER Wheels WITH FORK ASSEMBLY #1.

press to zoom
